Basic information
Category: Table
Action location: Table
Available from version: 1.0.3
Description
Leaves only the rows in the dynamic table that match all of the filters. If more than one filter has been added, you can set the way of joining filters using AND or OR logical conjunction. The action is not updated on a regular basis (hiding occurs after fulfilling the condition in "conditional execution" or - in the case of its lack - when initiating the form).
Action execution
Leaving the conditional field blank is tantamount to setting it to "true."
| Location of the action | Call type | Operation of the "Conditional execution" parameter | Condition of calling the action |
|---|---|---|---|
| Table | Call after conditional execution condition | Invokes an action | The "Conditional Execution" parameter will return "true" |
Configuration parameters
| Name of parameter group | Name of the parameter | From version | Description | Parameter type | Default value | Field type | Notes and restrictions |
|---|---|---|---|---|---|---|---|
| - | Way of joining filters | 1.0.78 | Specifies way of combining added filters. | Text | AND | Non-editable drop-down list | Logical conjunctions to choose from: AND, OR. |
| Filtering by value | Columns | 1.0.3 | Columns whose values will be checked | Array of variables | Editable field | ||
| Operators | 1.0.3 | An operator that specifies how columns with values will be compared in "Filter by value" | An array of text values | Drop-down list | Comparing operators - to choose: ==,! =,>, <,> =, <=, Regexp | ||
| Values | 1.0.3 | The values that will be compared with the value in the column | An array of text values | Editable field | The values are saved to the parameter in the form of text and converted into a type in the corresponding column. | ||
| Column filtering | Columns to compare | 1.0.14 | Columns whose values will be checked | Array of variables | Editable field | ||
| Operators | 1.0.14 | An operator that specifies how columns will be compared with other columns in "Column Filtering" | An array of text values | Drop-down list | Comparing operators - to choose: ==,! =,>, <,> =, <=, Regexp | ||
| Columns to which we compare to | 1.0.14 | Columns with which we compare | Array of variables | Editable field | The columns must be of the correct type - the same as the corresponding "Columns to compare" |
Parameter*- required field

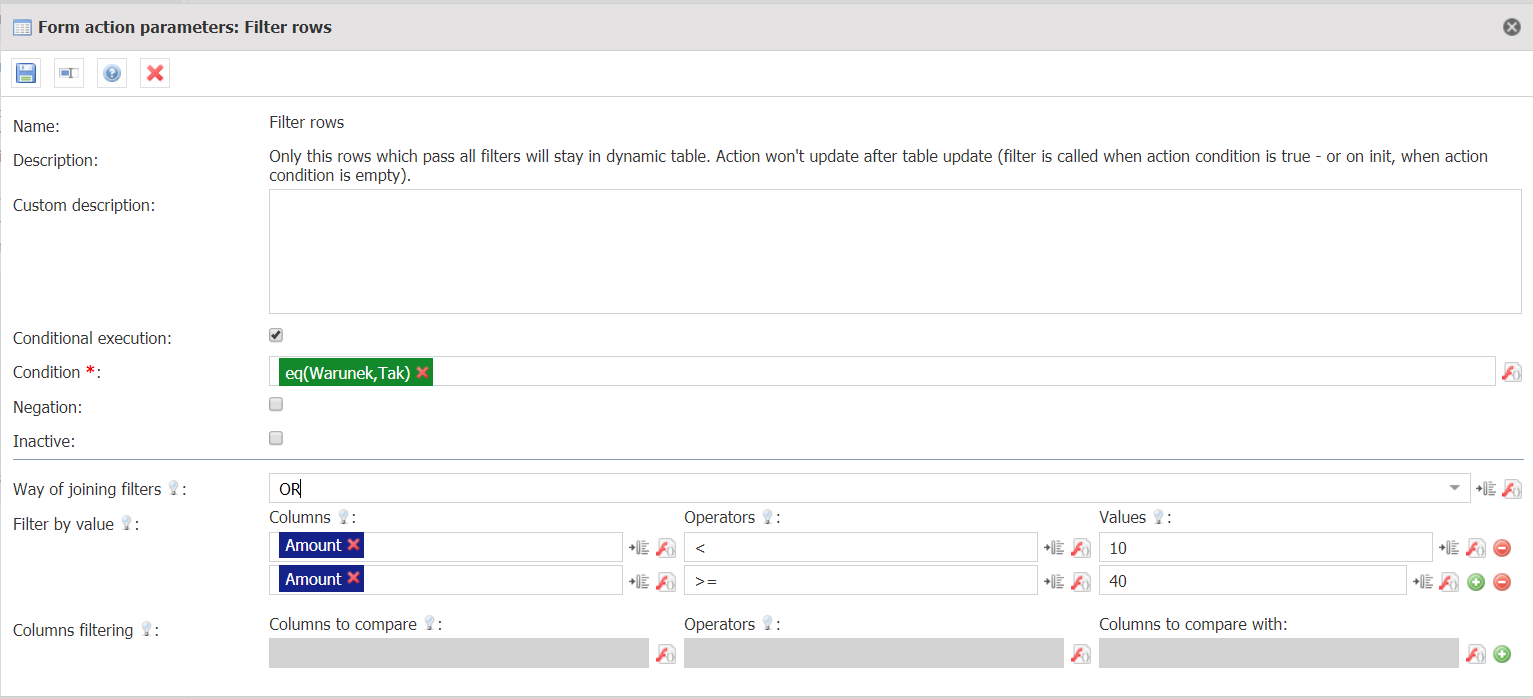

Sample configuration
Change log
1.0.3
- Adding a component.
1.0.14
- Adding column filtering option, adding "Current row" context variable.
1.0.40
- Solution to the problem with empty filters.
1.0.53
- The dynamic form checks if "Columns to compare" and "Columns with which we compare" have corresponding types.
1.0.78
- Adding "Way of joining filters" parameter.
